Working principle

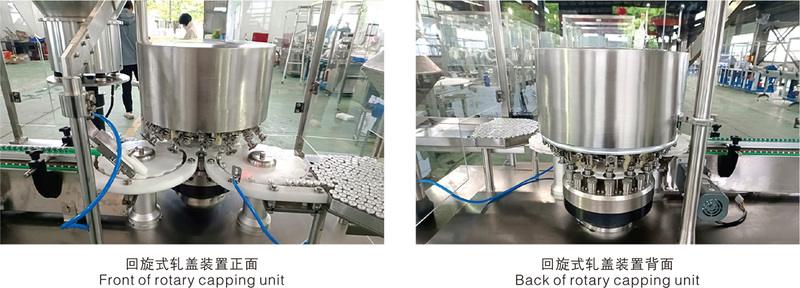

The penicillin bottle enters the bottle conveyor belt through the turntable, and the cap sorting bucket sorts out the messy bottle caps and sequentially enters the cap dropping track. The bottle sorting wheel drives the bottle to pass through the lower cap track, and the bottle mouth puts on the cap when entering the cap rolling station. The cap rolling knife then rolls the cap to complete the sealing, and finally it is sent out to the bottle receiving tray or conveyor belt by the bottle dispensing wheel.
Technological process
Rotary table bottle sorting → Conveyor belt feeding → Pulling wheel bottle sorting → Lid sorting bucket lid sorting → Lid dropping → Lid wearing → Lid rolling → Bottle dispensing
Performance characteristics
After digesting and absorbing advanced foreign technologies and integrating multiple patented technologies of our company, a new generation of improved capping machine has been developed based on the main characteristics of domestic capping machines. The main features are as follows:
Change from three blade capping to a small single blade side capping structure, which has a simple structure, strong adaptability to packaging materials, and good capping effect.
Adopting advanced PLC and human-machine interface, it has functions such as automatic shutdown in case of faults and technical fault display.
The pressure head and bottle holder drive the bottle cap to rotate synchronously with the bottle, resulting in better capping effect.

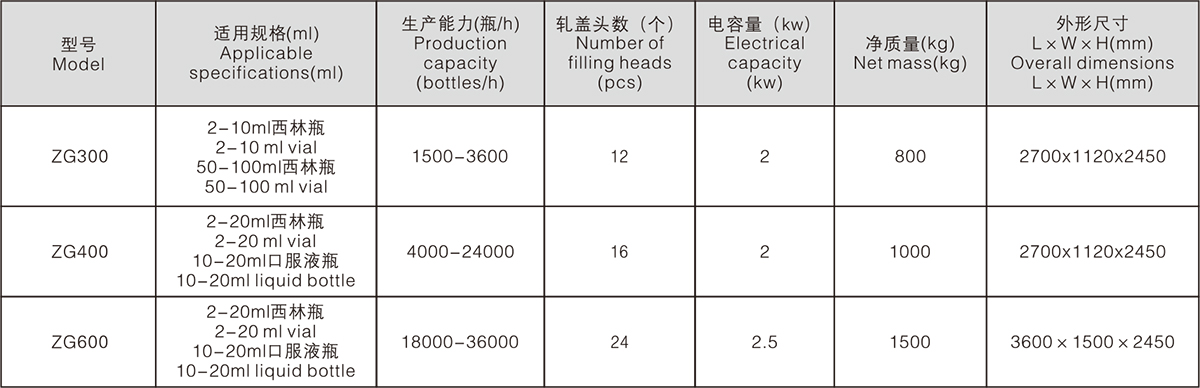

Technical Parameter
