Working principle

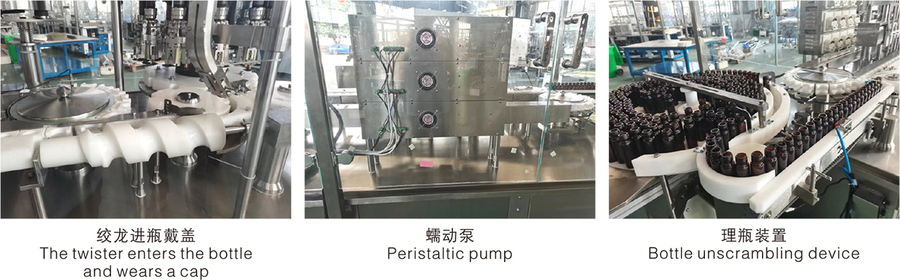

Glass bottles are fed into the turntable through a dryer or feeding tray. The turntable arranges the glass bottles in an orderly manner through a bottle blocking device and enters a single track. Then, the glass bottles are sorted by a dial wheel and enter the synchronous belt station in an orderly manner. There is a linear slide table on the synchronous belt station, and the filling needle moves back and forth through the slide table for reciprocating tracking and filling. The machine is equipped with a lid hopper that can automatically adjust, lower, and put on the lid. The glass bottles are automatically put on the lid and then enter the capping (rolling) station. The sealing function is completed under the work of the magnetic capping head or capping head.
Technological process
Rotary table bottle feeding → Conveyor belt feeding → Pulling wheel bottle sorting → Synchronous belt station bottle feeding → (front nitrogen filling) → Reciprocal tracking quantitative filling → (front nitrogen filling) → Lid sorting → Liding → (spinning) capping → Bottle discharge
Performance characteristics
We have digested and absorbed advanced foreign technologies, integrated multiple patented technologies of our company, and developed a new generation of improved capping machines based on the main characteristics of domestic capping machines. The main features are as follows:
-Equipped with a motion controller, it can simultaneously control four servo motors to complete different actions.

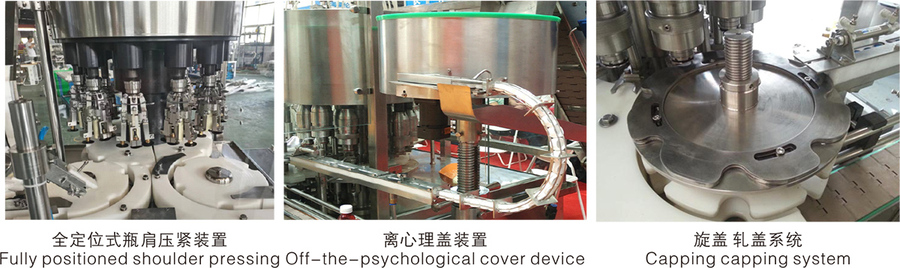

-Rotary capping head or magnetic capping head, with adjustable rotation force and reliable sealing.
-Double screw pattern rolling knife and double lock mouth knife, do not damage the lid.
-The patented technology of the hanging cap device is exquisitely designed with high processing accuracy. The hanging cap does not flip over, and the hanging cap has high precision. It does not hang the cap without a bottle, and stops the host when the cap is missing.
-Imported optoelectronic fiber optic detection bottles achieve no bottle filling, long service life, good stability, and fast capping speed.
-PLC human-machine interface control system, real-time display of production status, speed, output count, time, fault alarm and other functions.
-Metal pumps and ceramic pumps can be selected according to different user needs.

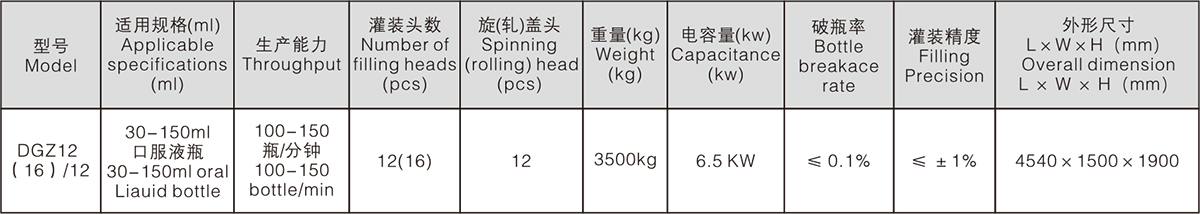

Technical parameter
