Working principle

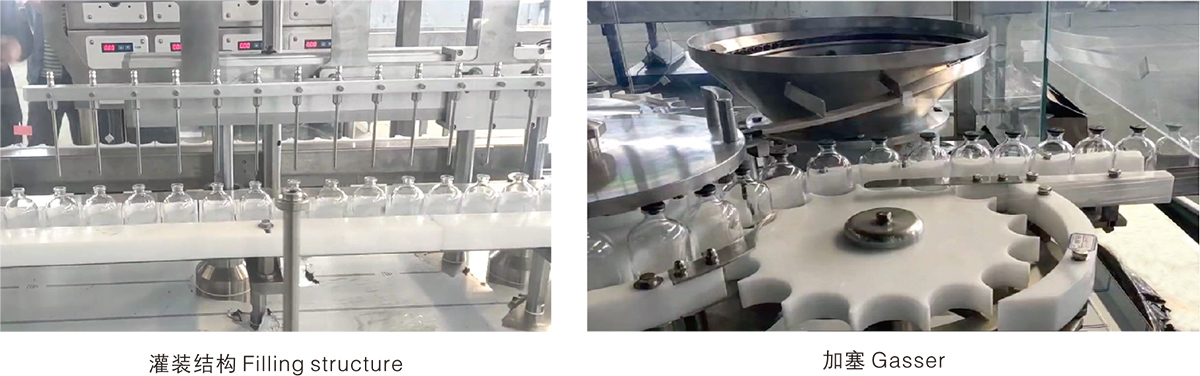

The penicillin bottles are transported in a whole row through the bottle feeding turntable to the bottle feeding and pulling wheel. The wheel sends the glass bottles to the synchronous belt V-shaped block, which then transports the bottles to the filling area. At the same time, the filling needle performs linear reciprocating tracking motion for packaging, and is transferred to the plug pressing wheel through the middle wheel to complete the plug pressing process. Then, the bottle is pushed into the bottle receiving plate or conveyor belt by the bottle discharging wheel.
Technological process
Unboxing and packing → bottle feeding → wheel feeding → synchronous V-block → (front nitrogen filling) → reciprocating tracking and quantitative filling → (front nitrogen filling) → plug sorting → plug adding → plug pressing → bottle discharge
Performance characteristics
After digesting and absorbing advanced foreign technologies and integrating multiple patented technologies of our company, a new generation of improved filling and capping machine has been developed based on the main characteristics of domestic filling and capping machines.
The main features are as follows:
-Adopting synchronous belt V-block positioning, filling needle synchronous tracking filling, linear top plug, rotary pressure plug, it is currently an internationally popular equipment with high pass rate for adding plugs.
-Adopting a fully servo driven system with high control accuracy.
-Single machine adaptation specification 30-100ml, strong compatibility, low investment cost.
-Using a dial to feed the bottle, the feeding is stable and the pour density is low.
-Each pump is individually controlled by a synchronous motor, allowing for individual adjustment of each pump.
-Easy replacement of specification parts, using 2 sets of molds, can adapt to 2-20ml or 30-100ml bottle shapes.
-The pressure plug adopts a rotating upper cold, and the bottom rail is raised and lowered, making the pressure plug softer.
-Configurable nitrogen filling function (before filling, after filling, before plug pressing).
-Configurable isolator.

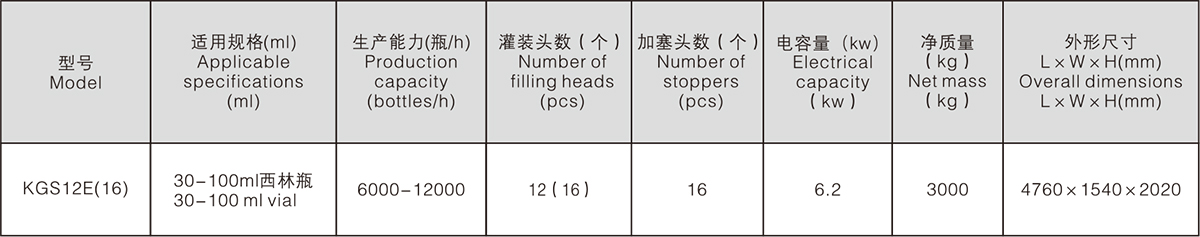

Technical parameter
