Working principle
The penicillin bottles are transported in a whole row through the bottle feeding turntable to the bottle feeding and pulling wheel. The wheel sends the glass bottles to the synchronous belt V-shaped block, which then transports the bottles to the filling area. At the same time, the filling needle performs linear reciprocating tracking motion for packaging, and is transferred to the plug pressing wheel through the middle wheel to complete the plug pressing process. Then, the bottle is pushed into the bottle receiving plate or conveyor belt by the bottle discharging wheel.
Technological process
Unboxing and bottling → Bottle feeding → Pulling wheel into bottle → Walking with V-shaped block → (front nitrogen filling) → Repeatedly tracking and quantitative filling → (front nitrogen filling) → Corking → Adding cork → Pressing cork → Exiting bottle
Performance characteristics
After digesting and absorbing advanced foreign technologies and integrating multiple patented technologies of our company, a new generation of improved filling and plugging machine has been developed based on the main characteristics of domestic filling and plugging machines.
The main features are as follows:

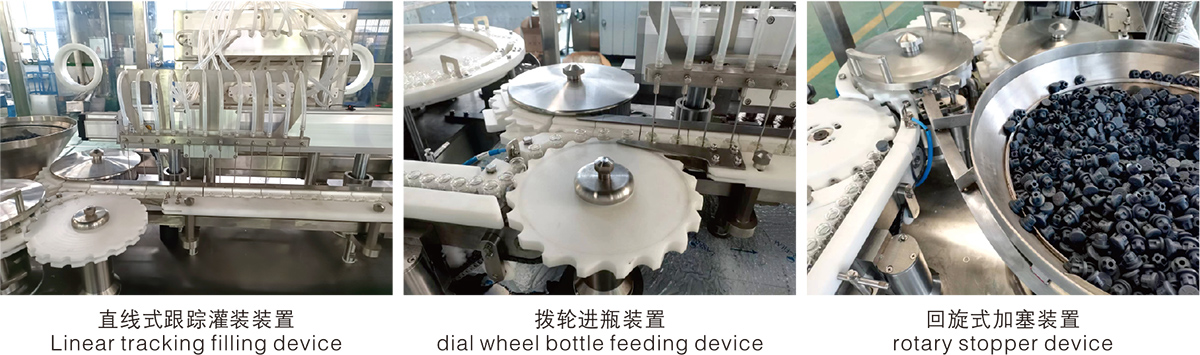

-Adopting synchronous belt V-block positioning, filling needle synchronous tracking filling, linear top plug, rotary pressure plug, it is currently an internationally popular equipment with high pass rate for adding plugs.
-Adopting a fully servo driven system with high control accuracy.
-The single machine is suitable for specifications of 2-20ml and 30-100m, with strong compatibility and low investment cost.
-Using a dial to feed the bottle ensures stable feeding and a low bottle pouring rate.

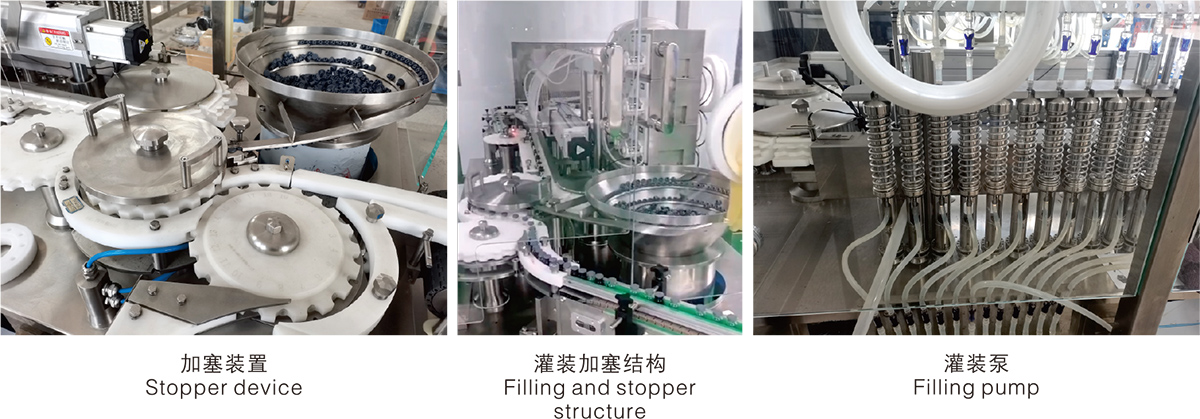

-Each pump is individually controlled by a servo motor, allowing for individual adjustment of each pump.
-Easy replacement of specification parts, using 2 sets of molds can adapt to 2-20ml or 30-100ml bottle shapes
-The pressure plug adopts a rotating upper plug, and the bottom rail is raised and lowered, making the pressure plug softer.
-Configurable nitrogen filling function (before filling, after filling, before plug pressing).
-Configurable isolator.

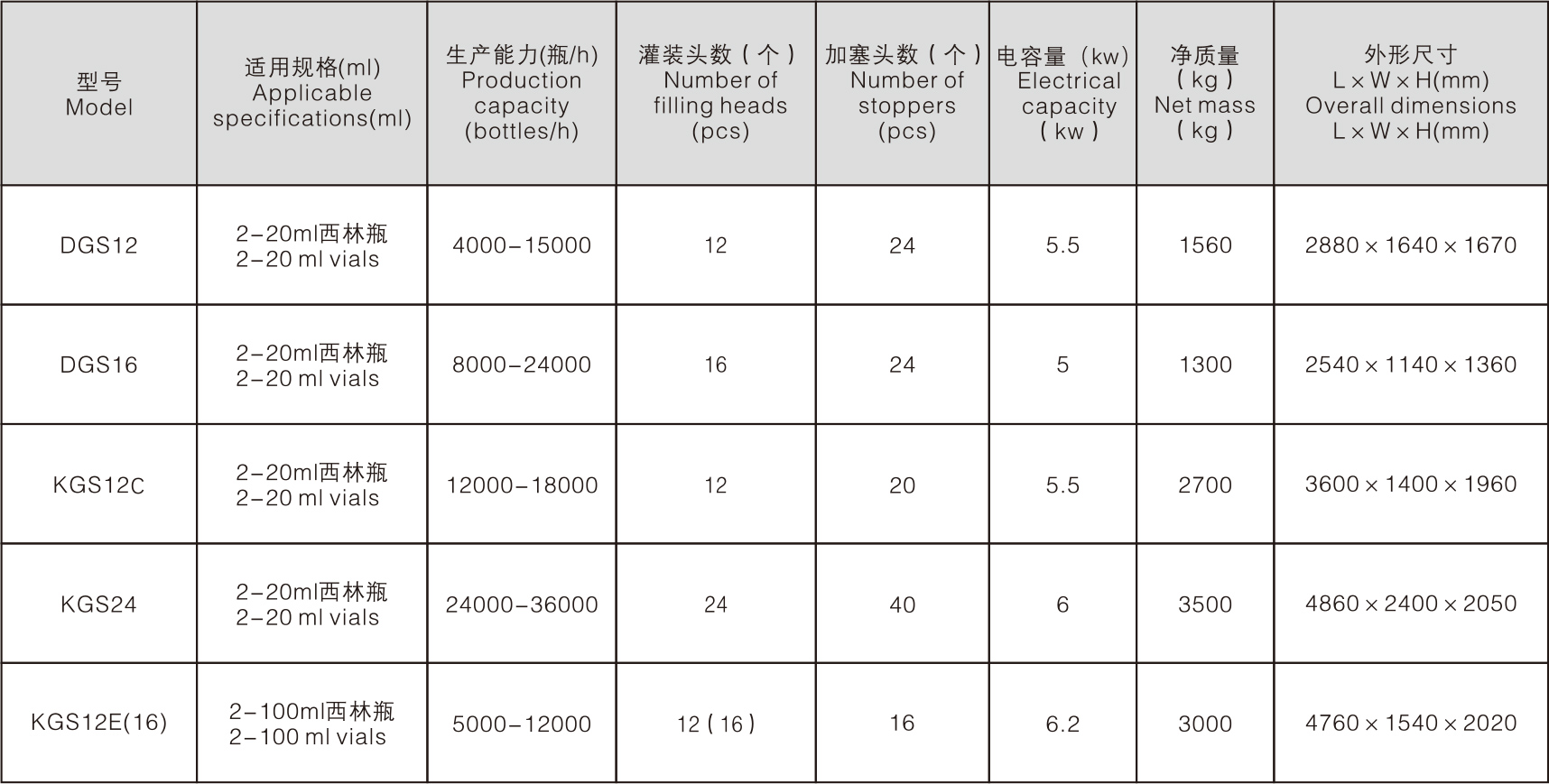

Technical parameter
