Technological process

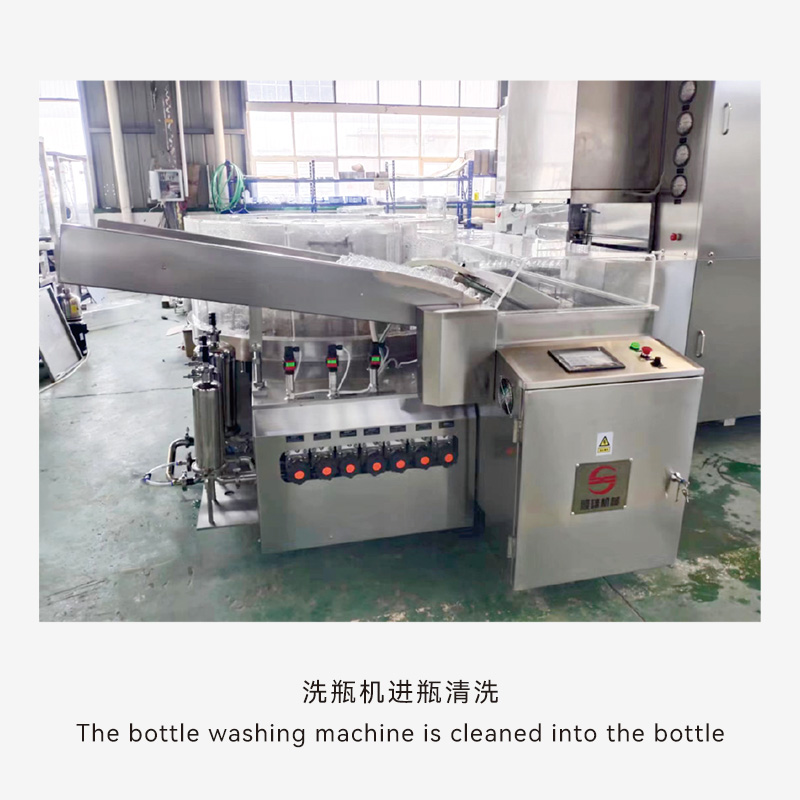

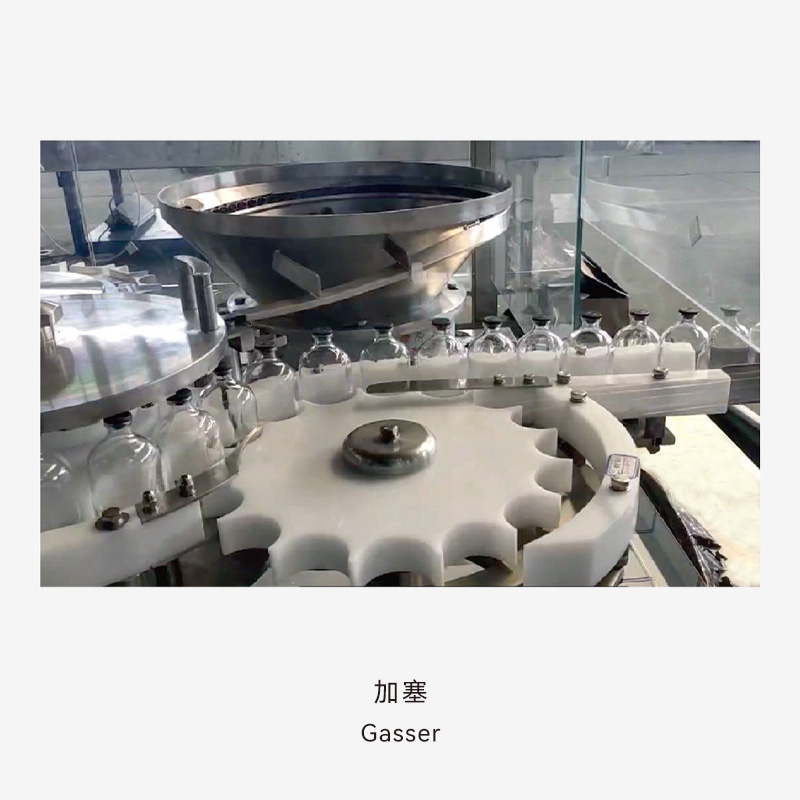

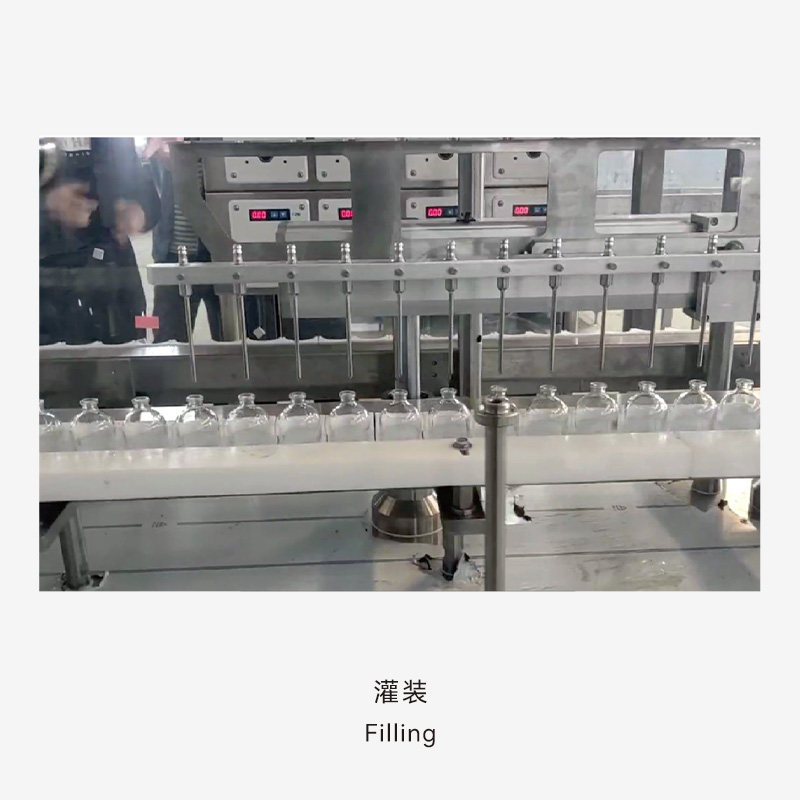

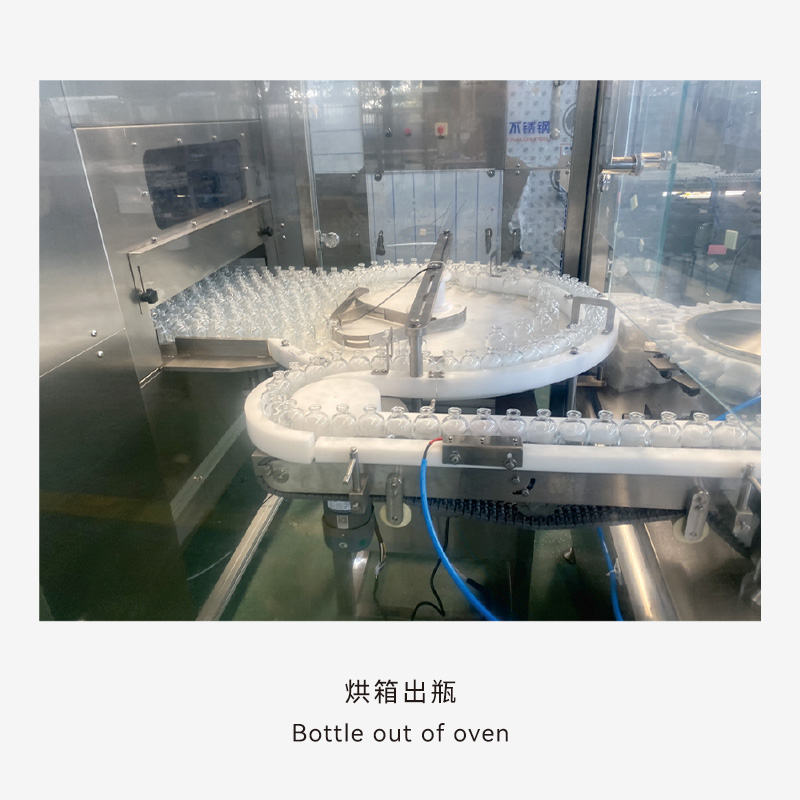

Unboxing and bottling of penicillin bottles → Mesh belt in bottle → Spray water → Ultrasonic washing → Twister in bottle → Cam lifting bottle → Mechanical arm gripping bottle → Mechanical arm flipping bottle → (Outer wall spray rinsing of bottle) → Circulating water rinsing → Circulating water rinsing → Compressed air → Injection water → Compressed air → (Outer wall blowing of bottle) → Mechanical arm flipping bottle → Pulling wheel out of bottle → Preheating → High temperature drying sterilization → Cooling → Bottle conveying → Rotary table in bottle → (Front inflation) → Medication filling → (Rear nitrogen filling) → Automatic plug sorting → Automatic plug filling → Compression plug → Bottle outlet → Cap rolling → Finished product outlet

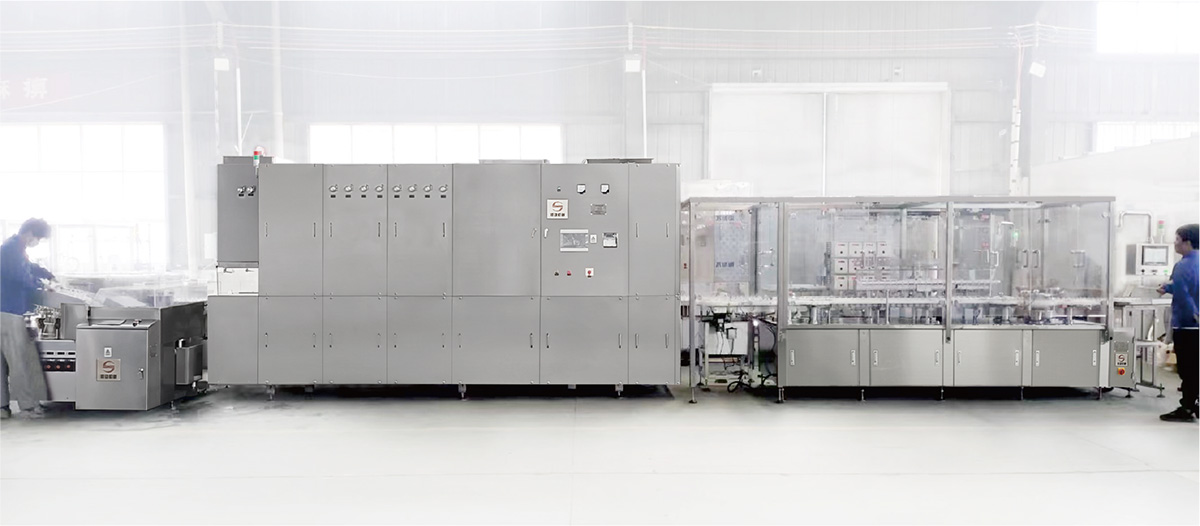

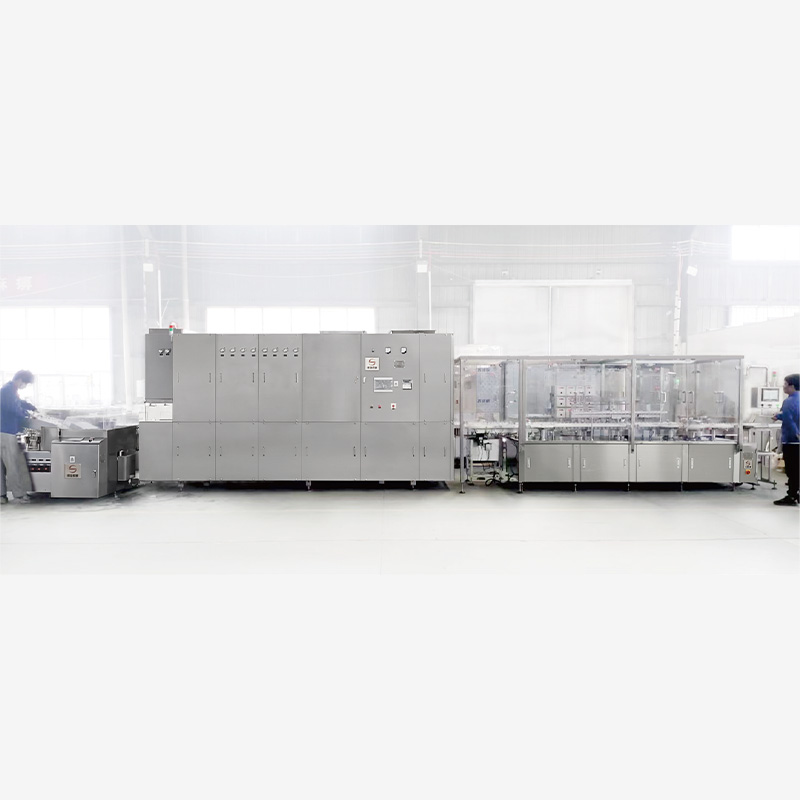

Large capacity washing, drying, filling and rolling linkage line
Performance characteristics
After digesting and absorbing advanced foreign technologies and integrating multiple patented technologies of our company, a new generation of penicillin bottle linkage production line has been developed based on the main characteristics of domestic linkage lines. It has successively won the titles of "Changsha Famous Brand Product" and "Hunan Famous Brand Product". The main features are as follows:
-Divided into four working areas: cleaning, drying and sterilization, filling and plugging, and capping, each individual machine has specific functions and can be accurately implemented.
-Advanced design, reasonable structure, high degree of automation, stable and reliable operation.
-Compact structure, small footprint, greatly reducing energy consumption costs.
-Suitable for penicillin bottles with specifications of 30-100 ml, with fewer replacement parts and easier adjustment.
-The components in contact with the medicinal solution are made of high-quality imported silicone tubing and 316L stainless steel material, which meets GMP requirements.
-The equipment is easy to clean, disinfect, and sterilize, making it convenient for production operations and maintenance.
-The transmission components of the equipment have no leakage of lubricating oil or coolant, and there is no contamination caused by placement.
-The entire unit adopts PLC programmable and human-machine interface control for single machine operation, which can be controlled by linkage and single machine operation, and can achieve real-time monitoring of production status
-It can automatically shut down and sound an alarm in the event of a malfunction.
-All winches and pulleys are made of imported POM material.
-All purchased parts such as water pumps, motors, bearings, etc. are from well-known domestic and foreign brands.

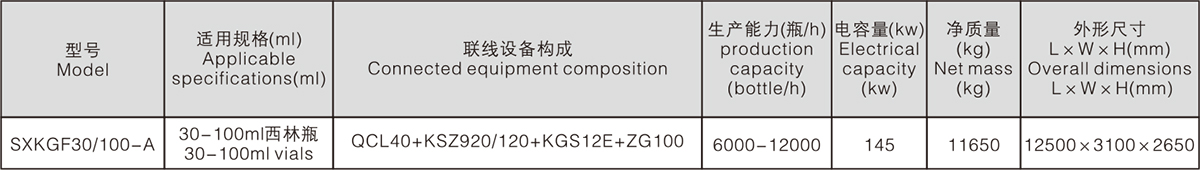

Technical parameter
